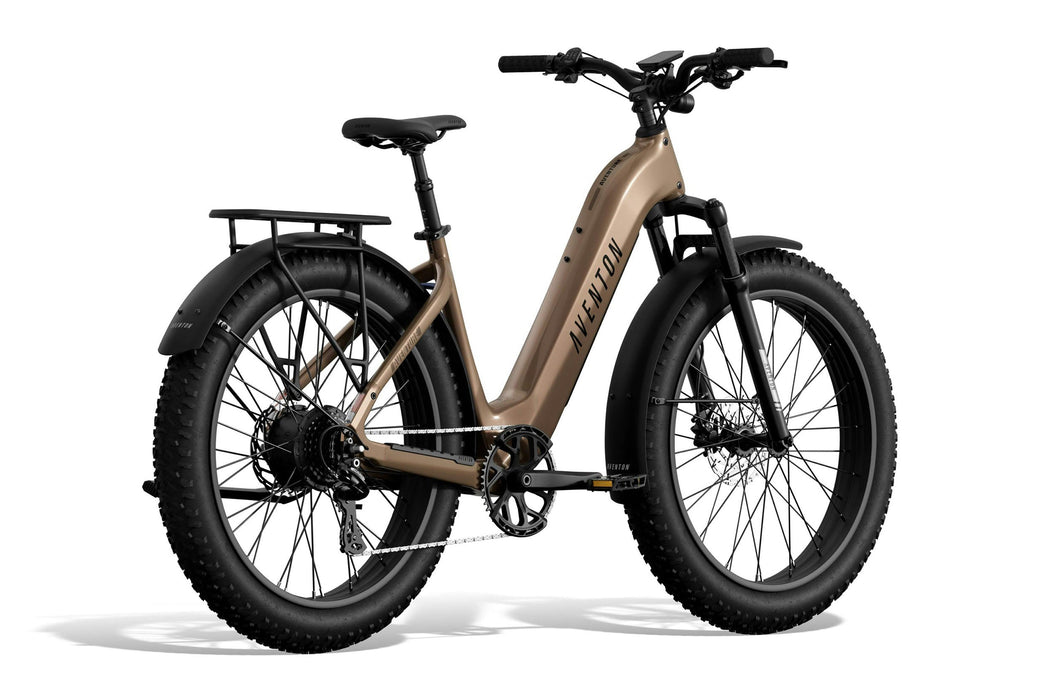

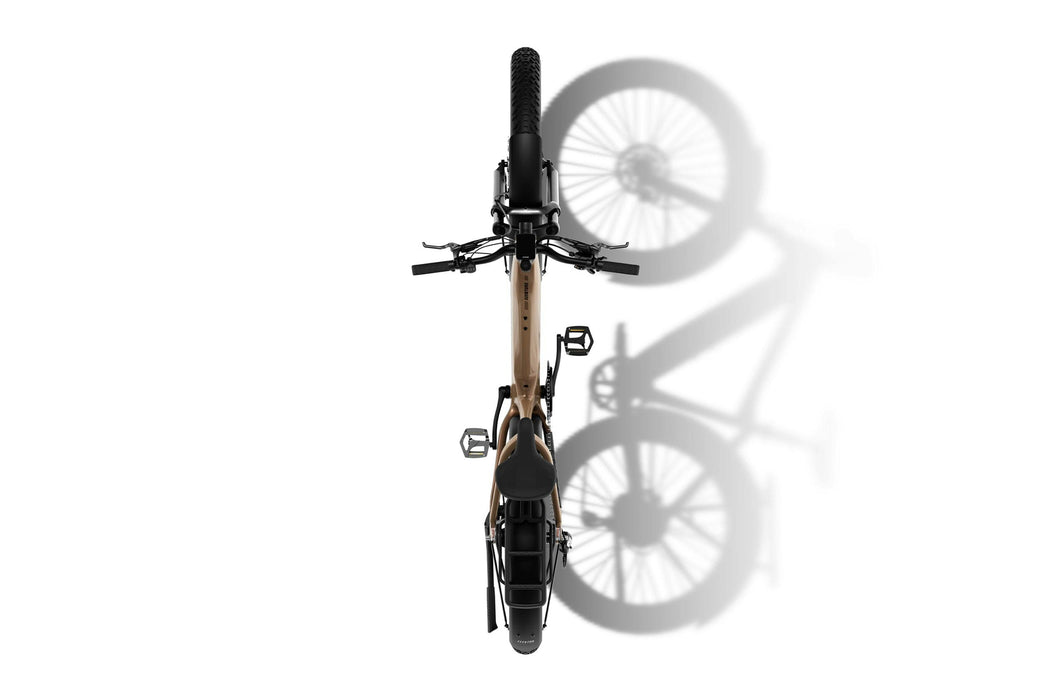

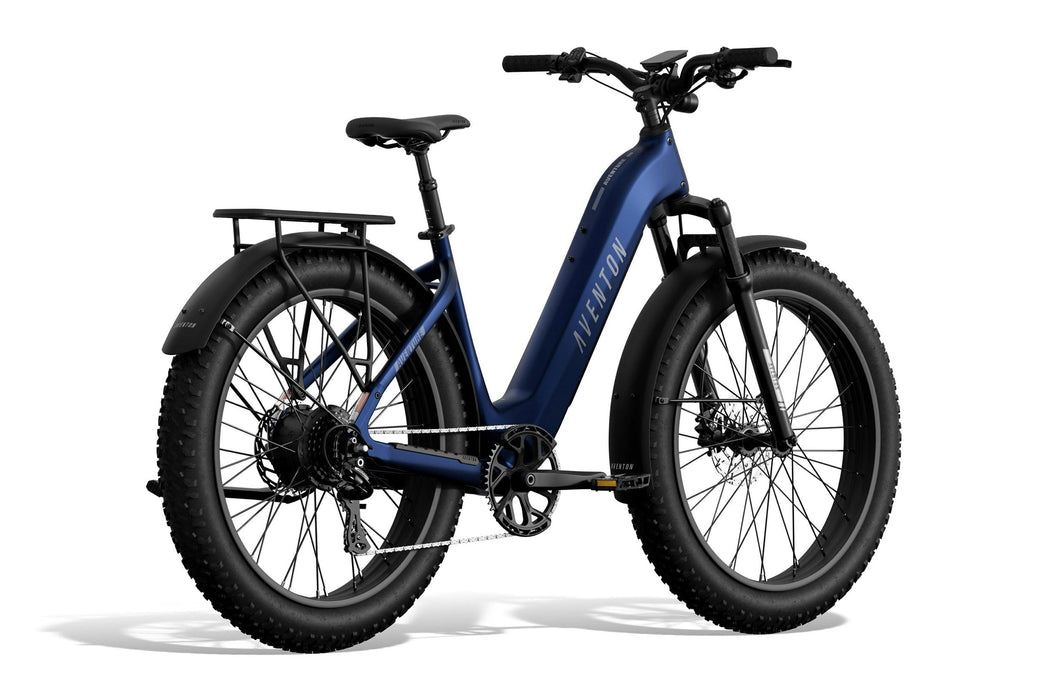

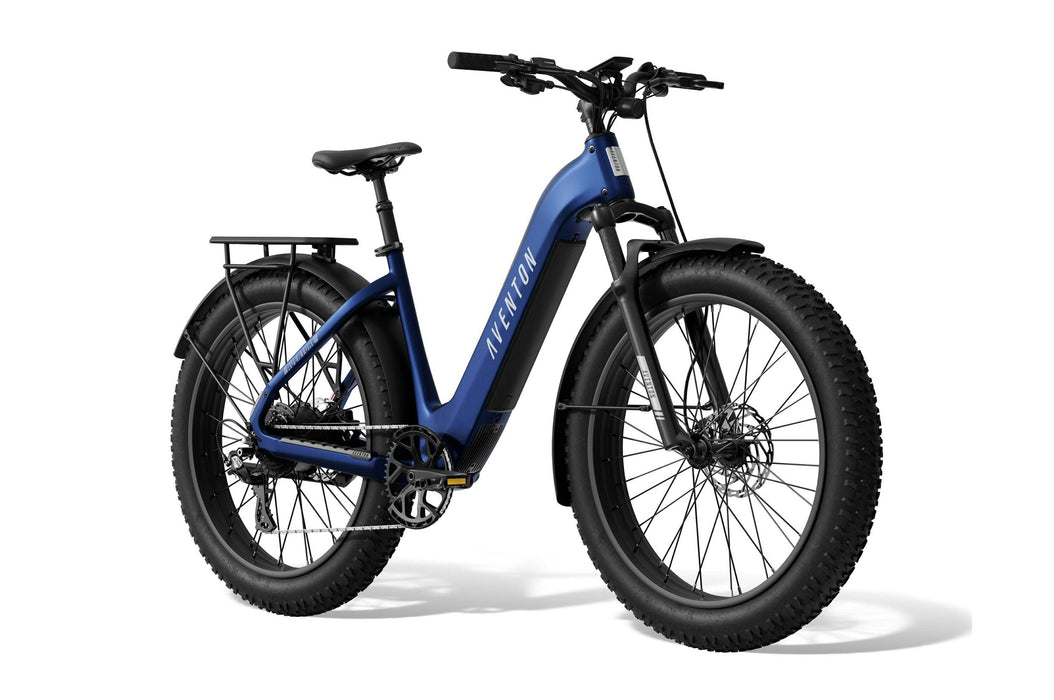

Aventon Aventure 3 Off-Road Step Through Electric Bike
Save Minimum $449 when you trade-in your old e-Bike. Learn More.
Save Minimum $449 when you trade-in your old e-Bike. Learn More.
|

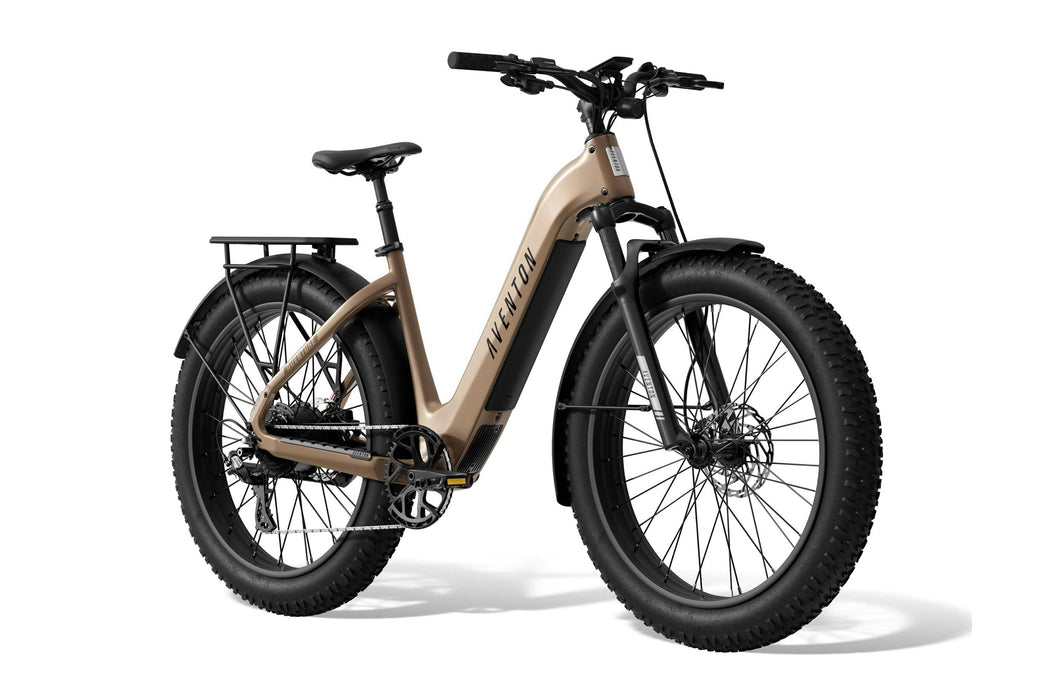

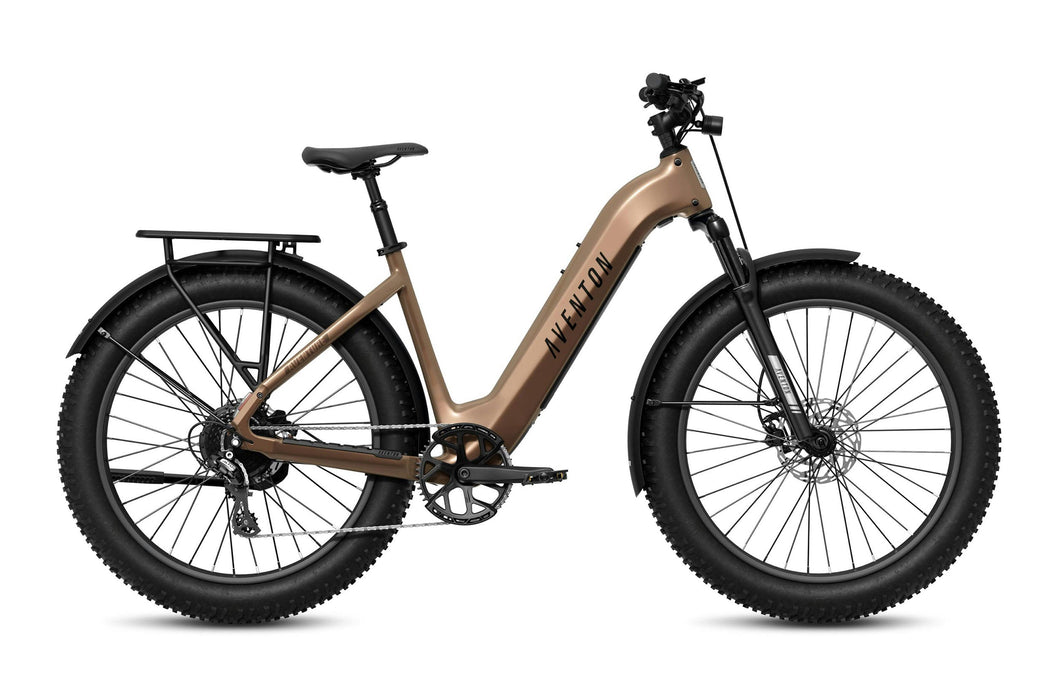

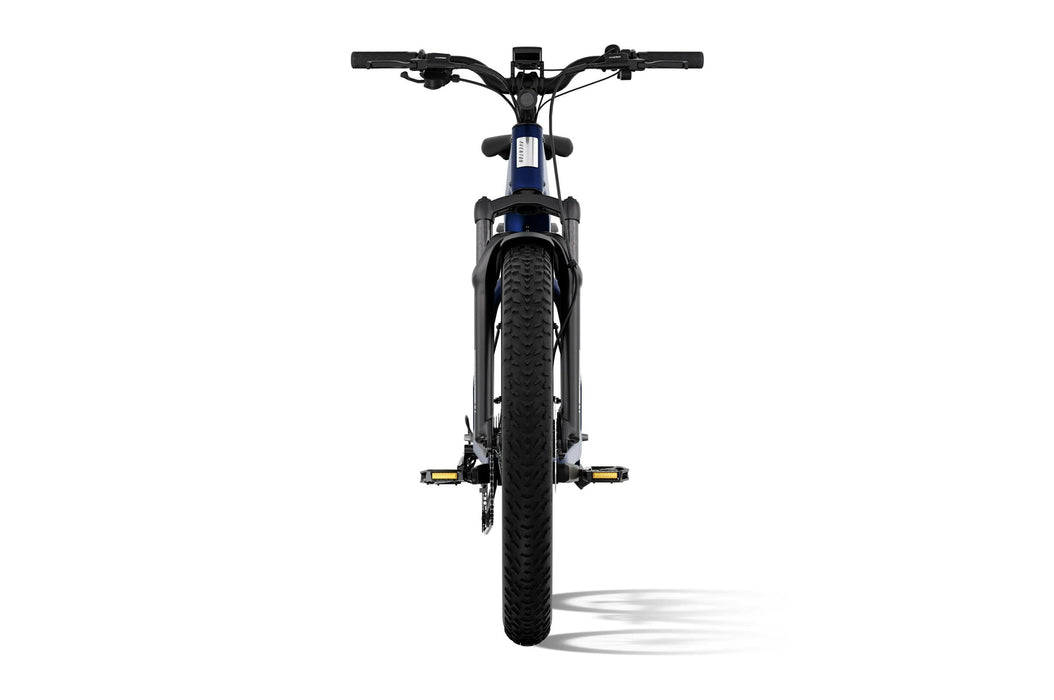

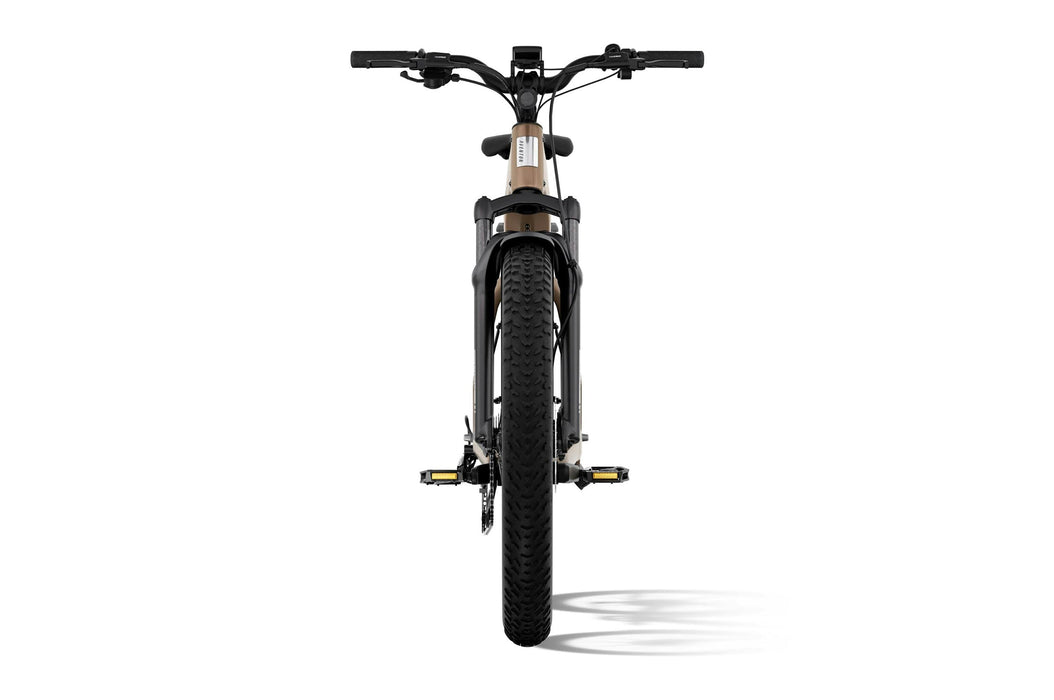

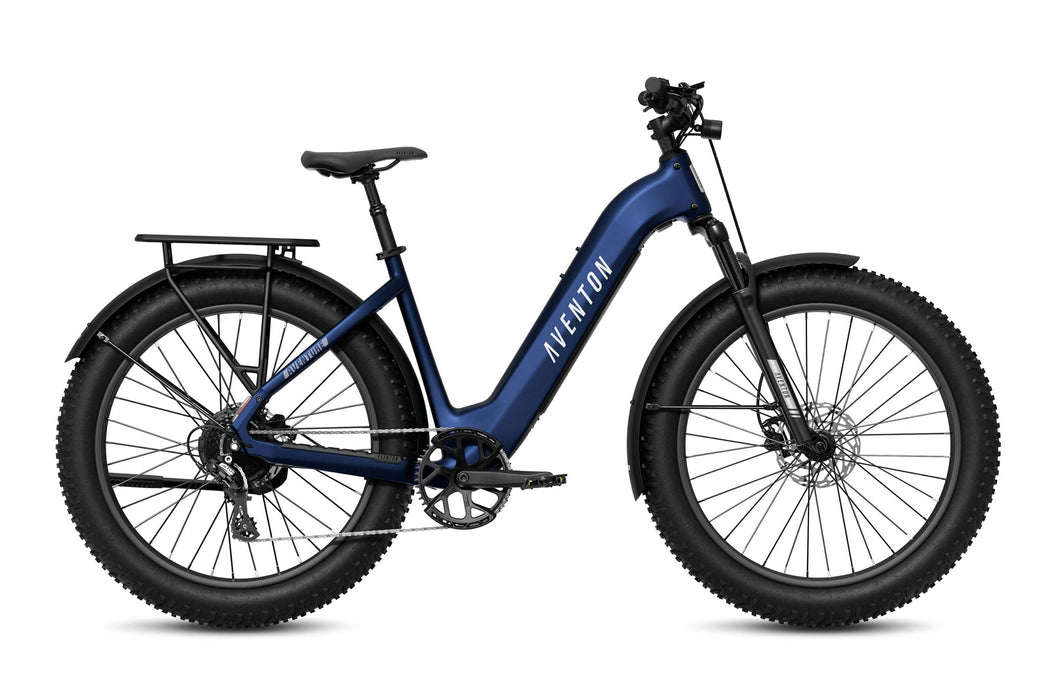

AVENTON AVENTURE 3 |
|
| TOP SPEED | 25 kph |
|
MAX. RANGE |
104 km |
| MOTOR | 36V, 250W Hub Drive |
| THROTTLE | N/A |
| BATTERY |
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells |
| WEIGHT | 34.9 kg |
| RIDER WEIGHT | 181 kg |
|
RIDER HEIGHT |
R: 4'11" -5'7" | L: 5'7" - 6'1" |

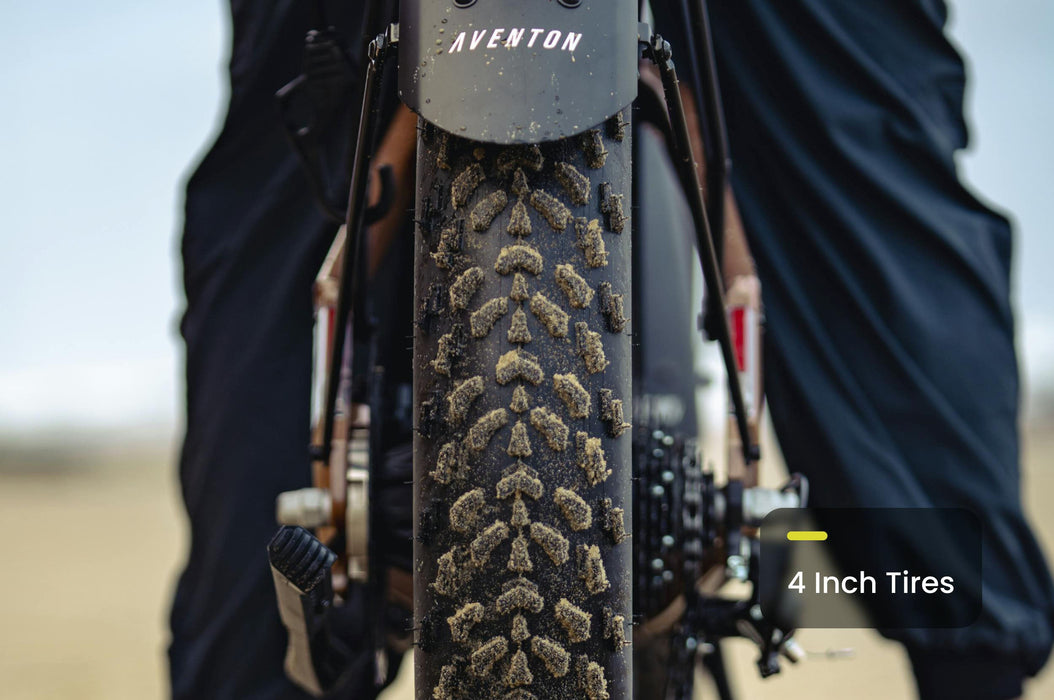

| TYRES | Inova 26x4.0 puncture resistant |
| BRAKES |
Front + rear:
Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
|
| WATER RESISTANCE | IPX5 |
| CHARGER | 36V Output: 42V/ 4A, 5 hours charging time |
| CLASS | Class 2 Ebike |
| FRAME | 6061 Aluminum, Gravity Cast Front Triangle |
| CHAIN | 7/8 Speed 118L |
| FORK | Aventon/Zoom Suspension Fork, 80mm travel, with lockout |
| REAR SPACING | 190mm |
| FORK SPACING | 135mm |
| FRONT WHEEL | 26", 36 hole, 13g, Double Wall Aluminum Fat Tire Rim, Nutted Axle, Schrader Valve |
| REAR WHEEL | 26", 36 hole, 12g, Double Wall Aluminum Fat Tire Rim, Nutted Hub Drive, Schrader Valve |
| DISPLAY | Aventon BC280 |
| BATTERY WEIGHT | 3.9 KG |
| SENSORS | Double Sided Bottom Bracket Torque Sensor |
| LIGHTS | Front and rear lights integrated |
| REAR DERAILLEUR | Shimano Altus 8-Speed |
| SHIFTER | Shimano 8-Speed Trigger |
| CASSETTE | 12-32T / 8 Speed Shimano CS HG200-8 |
| CHAINRING | 48T |
| CRANKSET | 3pc, 170mm crank arm |
| BOTTOM BRACKET | 100x177 Square Taper, Double Sided Torque sensor bottom bracket |
| PEDALS | 9/16" Alloy Platform |
| SADDLE | Aventon Saddle |

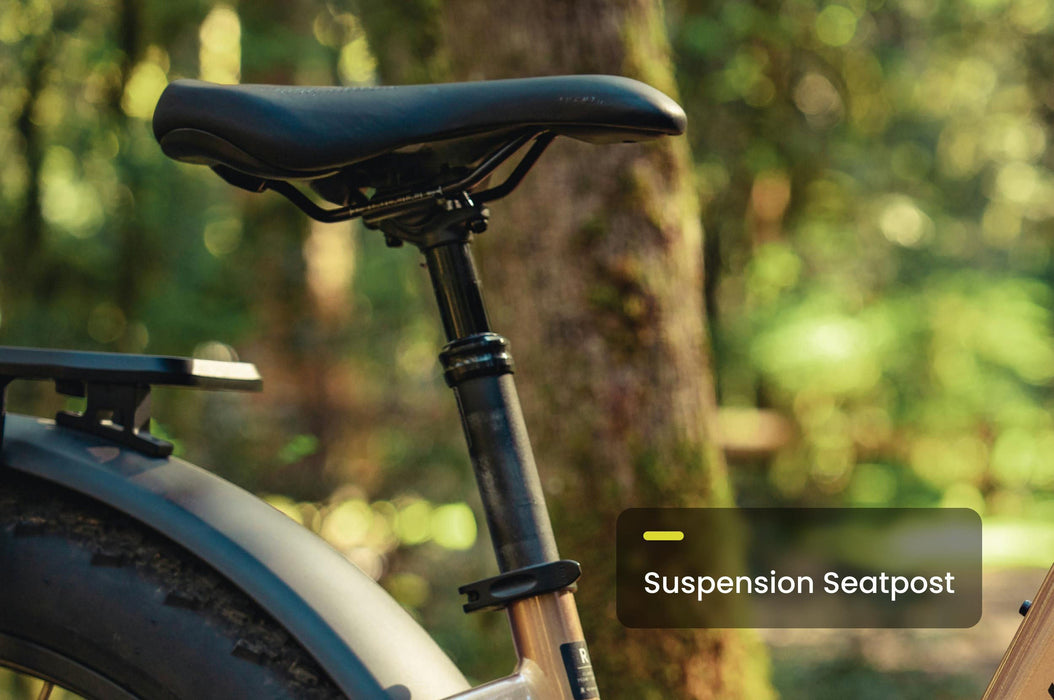

| SEATPOST | Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel |
| HANDLEBARS | Aluminium 31.8mm, 680mm |
| GRIPS | Aventon Lock on grips |
| HEADSET | Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs |
| FENDERS | Included |
| REAR RACK | Included |

|
Aventon Aventure 3 Step Through Dimensions |
||
|
Frame Size |
Regular |
Large |
|
Height |
150cm - 170cm |
170cm - 185cm |
| Seat Tube Length | 400mm (15") | 480mm (18") |
| Top Tube Length Horizontal | 602.5mm (23") | 640.5mm (25") |
| Bottom Bracket Drop | 65mm (2") | 65mm (2") |
| Head Tube Length | 130mm (5") | 130mm (5") |
| Head Tube Angle | 67° | 67° |
| Seat Tube Angle | 72° | 72° |
| Rear Chainstay Length | 470mm (18") | 470mm (18") |
| Front Wheel Centre | 689.8mm (27") | 727.6mm (28") |
| Wheelbase | 1152.2mm (45") | 1190.2mm (46") |
| Reach | 390mm (15") | 428mm (16") |
| Stack Height | 653.9mm (25") | 653.9mm (25") |
| Fork Length | 525mm (20") | 525mm (20") |
| Fork Offset | 43mm (1") | 43mm (1") |
| Trail | 102.5mm (4") | 102.5mm (4") |
| Wheel Size in Inches | 26" x 4.0" | 26" x 4.0" |
